Fiber Cleaver X5
Cornet Fiber Cleaver X5
is a compact, high-precision tool designed for cleaving single-mode or multi-mode fibers in preparation for fusion splicing. It delivers consistent, low-angle cleaves (typically <0.5°), ensuring low splice loss and reliable performance. The X5 model is widely used in FTTH, telecom, and data network installations.
KEY FEATURES

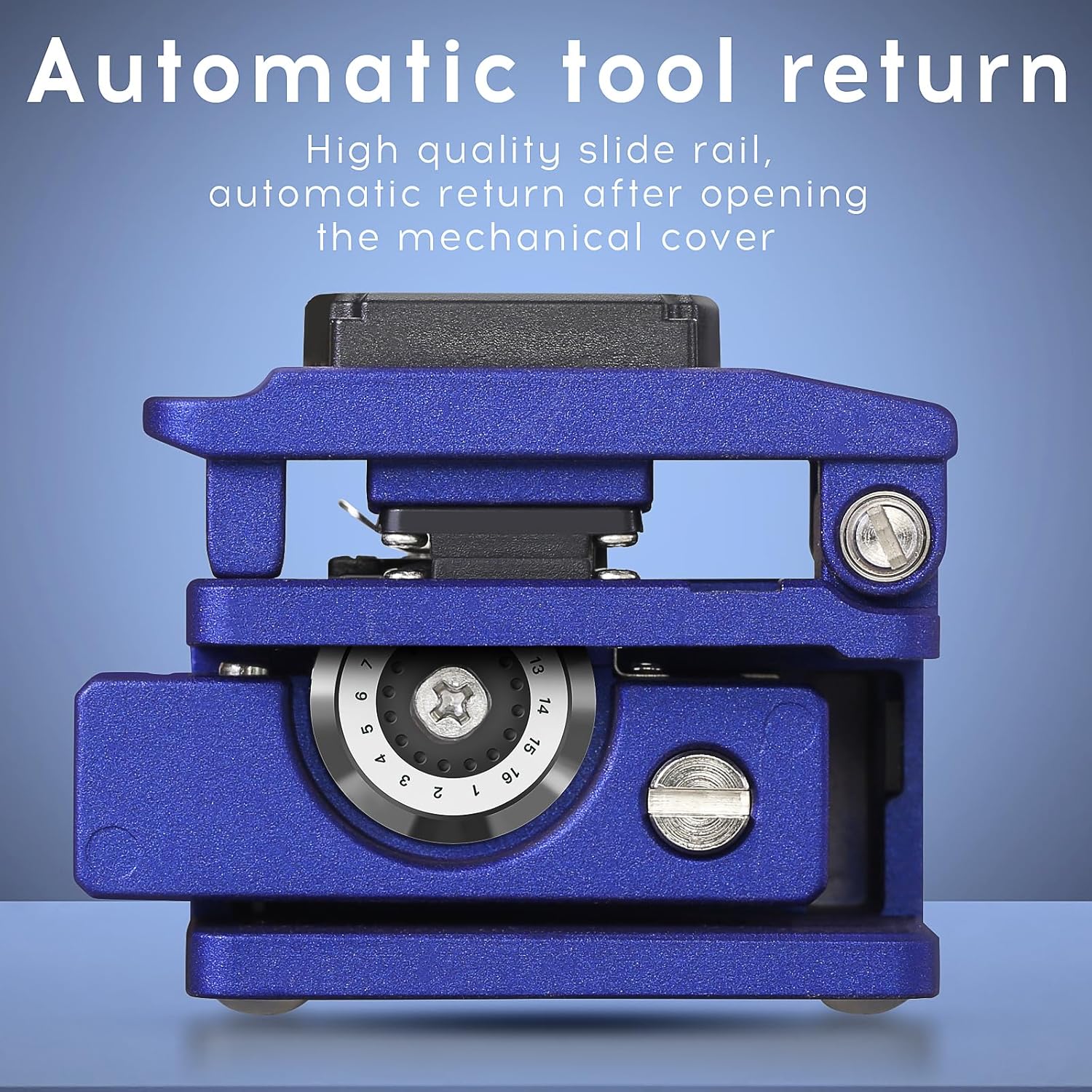

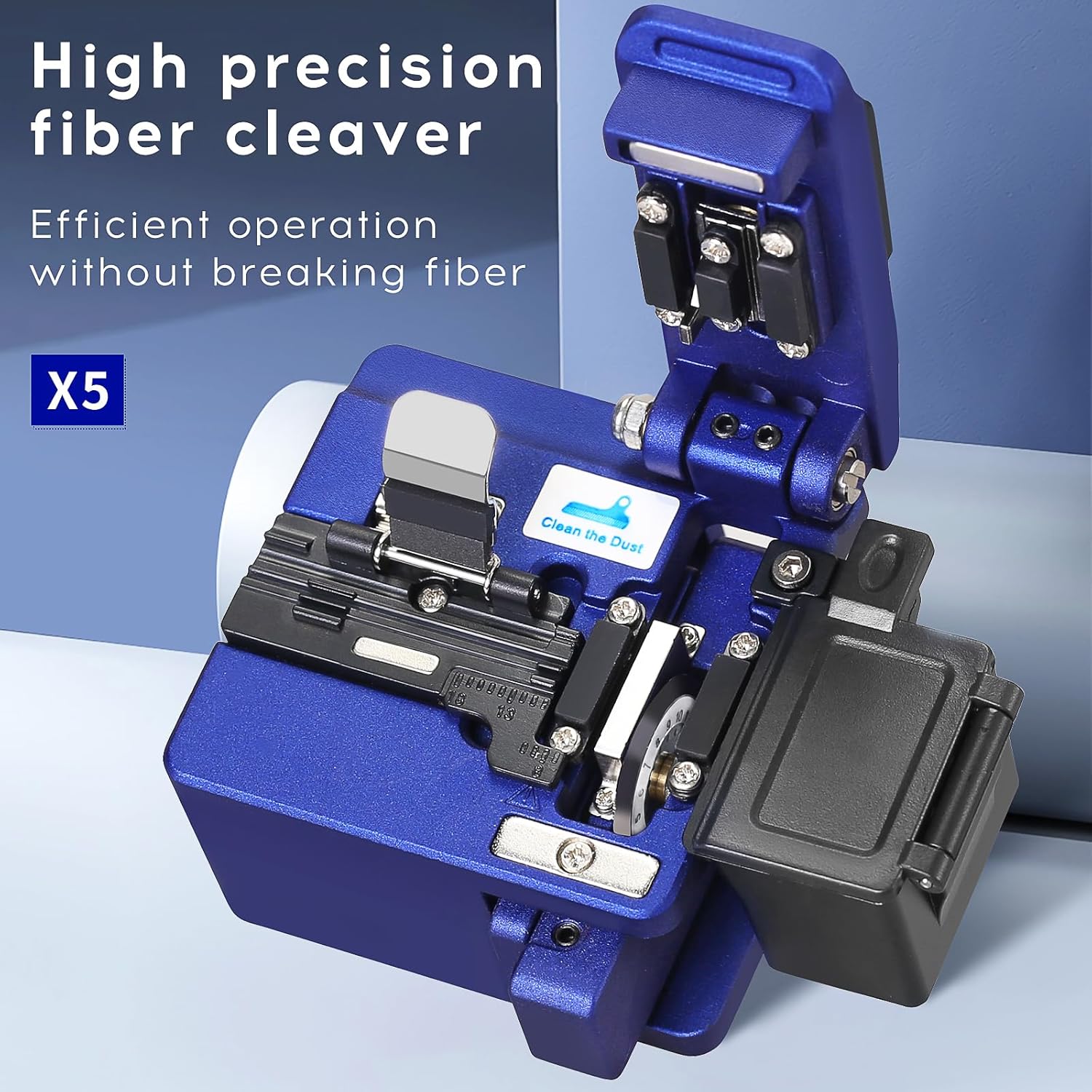

•High-precision fiber cleaver with auto-return blade
•Cleaves 125 µm cladding fibers with 0.25/0.9 mm coating
•Cleave angle: ≤ 0.5° (ideal for fusion splicing)
•Rotary blade with 16 cutting positions (long lifespan)

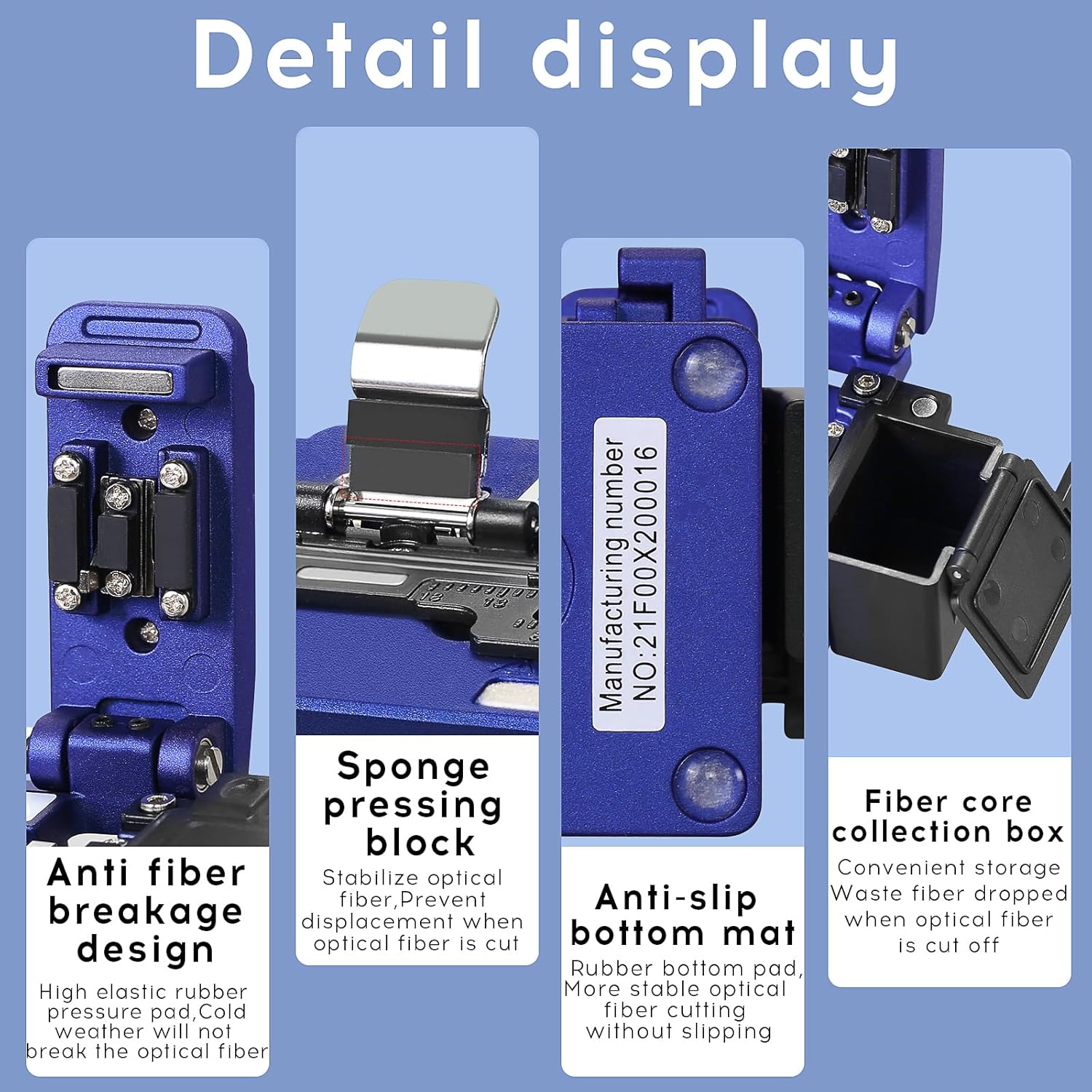

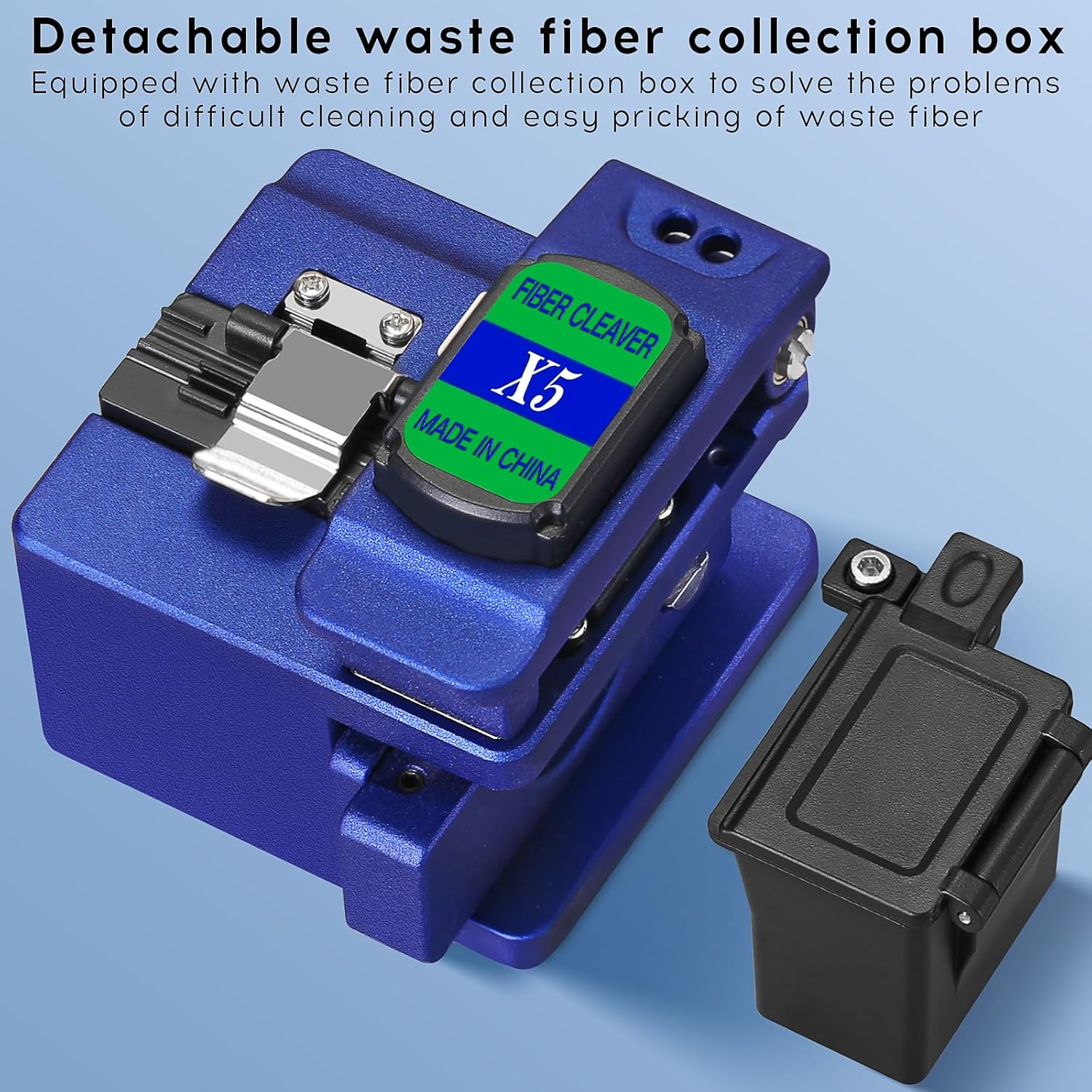

•Magnetic off-cut collector bin for fiber scraps
•Anti-slip base and lightweight design
•Blade life: up to 48,000 cleaves
| Specification | |
| Model | X5 Fiber Optic Cleaver |
| Fiber Type | Single-mode / Multi-mode |
| Cladding Diameter | 125 µm |

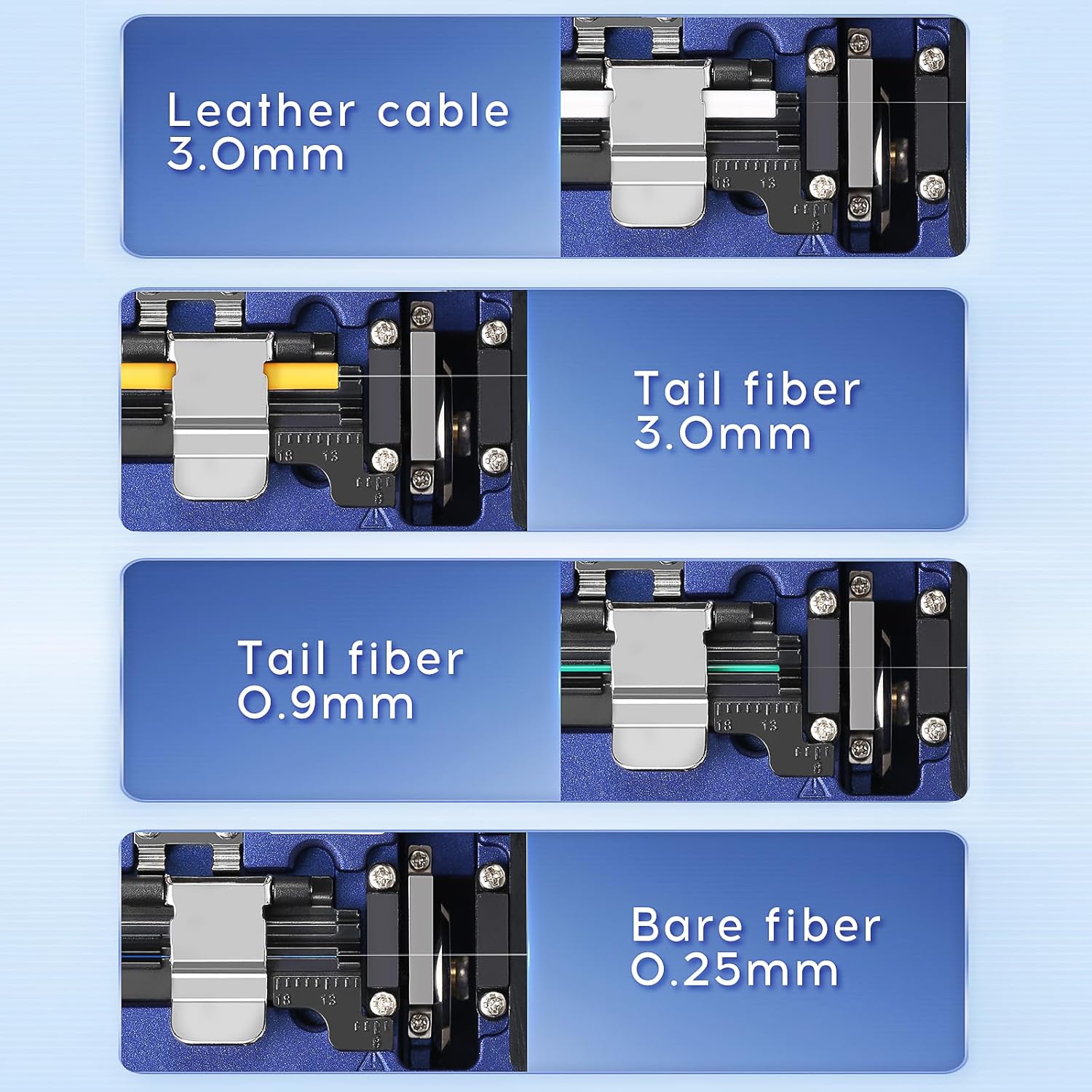

| Coating Diameter | 250 µm and 900 µm (standard support) |
| Cleave Length | 9-16mm (00.25)/10-16MM (0.25) |
| Cleave Angle | ≤ 0.5° (typical) |
| Blade Positions | 16 (rotatable blade) |
| Blade Lifespan | Up to 48,000 cleaves |
| Collector Bin | Included (spring-loaded or magnetic) |
| Operation Type | Manual (push-to-cut or clamp release) |

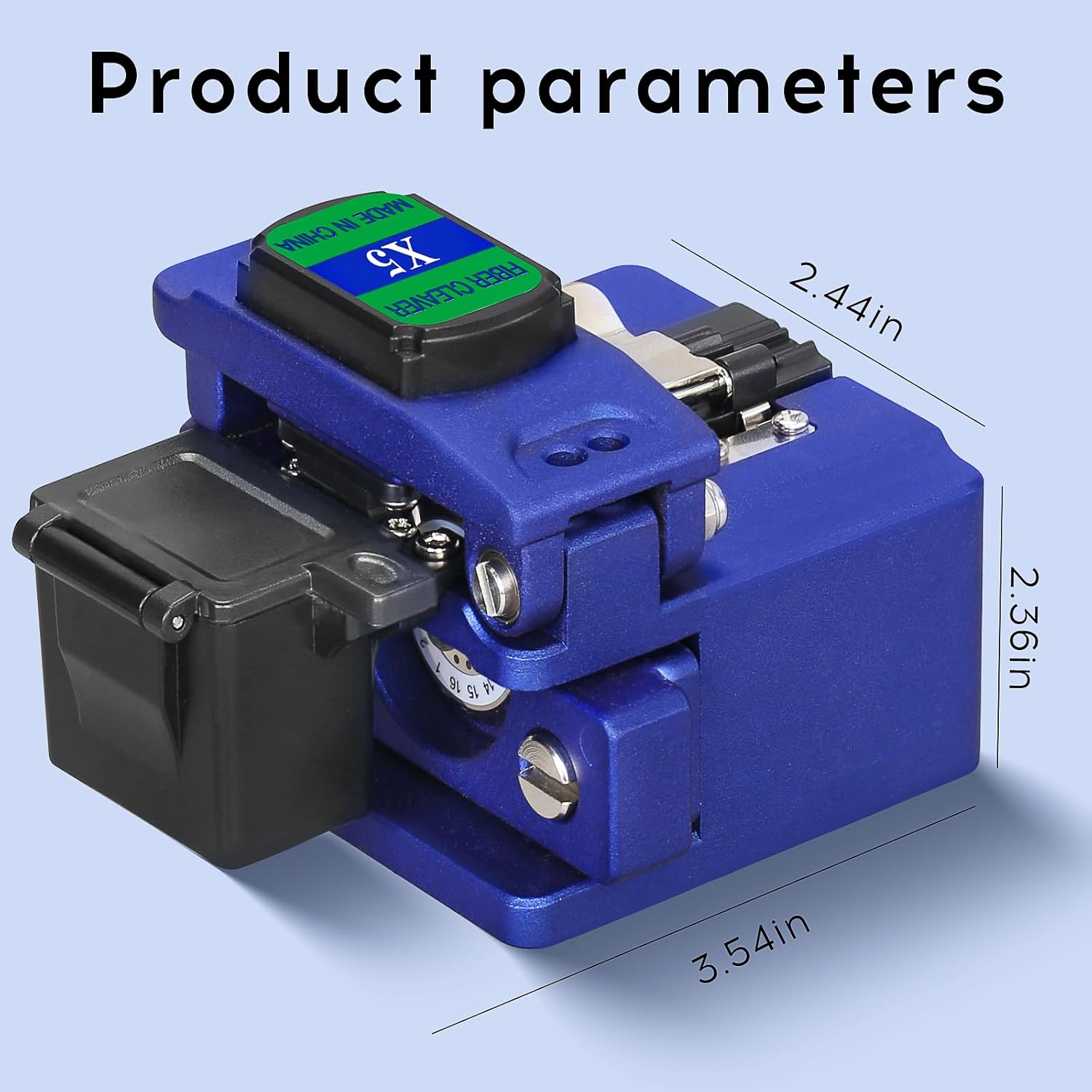

| Dimensions | ~ 90 × 62 × 60 mm |
| Weight | ~ 251 g |
Product information
| PART NO. |
| CN-FOCL-GRYX5 |
